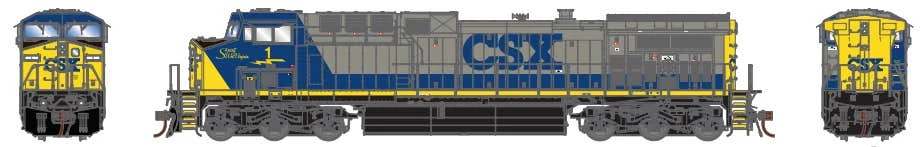

Athearn G31650 HO AC4400CW Locomotive W/DCC/Sound – CSX #1

CSX purchased more AC4400CWs than any other railroad, spanning almost the entire production period. This includes three of the first six produced
which have distinctive spotting features compared to all other units. A lightning bolt graphic was applied under the road number making these easy to
identify as AC traction motors. Unique to CSX, all these units are equipped with hooks to carry a length of chain under the walkway.
ROAD NUMBER SPECIFIC FEATURES:
• #1 Named Spirit of West Virginia, One of the original six AC4400CWs built, Re-trucked and renumbered from the originally delivered 9100 series,
Holden K5H Horn, early body with central air intake forwards, unique angled grab irons on top of the nose, radiator grills on right side are
evenly sized (a feature that didn’t last with later models), unevenly spaced rear grab irons, vertical handrail behind invertor cabinet, extended
range dynamic brakes, early no-notch fuel tank, bolted on fuel tank, PTC antenna array, GE Steerable trucks.
• #17 K5LAR24 horn, PTC antenna array, early body features, central air intake in forward position, early no-notch fuel tank, bolted on fuel tank,
unevenly spaced rear grab irons, vertical handrail behind inverter cabinet, lipped Exhaust tub, extended dynamic brakes, GE Hi-Adhesion
trucks, struts on all 4 corners of each truck, delivered with inside struts but modified to outside braced struts.
This model represents the later modified version.
#420 K5LAR24 horn, late body features, central air intake moved rearward, late fuel tank with notch, fuel tank welded to frame, evenly spaced rear
grab iron, handrail behind invertor cabinet jogged for capacitor box, two handrails above inverter cabinet, late antenna package,
GE steerable trucks.

PROTOTYPE SPECIFIC INFORMATION
Introduced by GE in 1993 and built until 2004, when it was replaced
by the Evolution Series Tier II compliant model, the AC4400CW is a
staple of modern railroading. 2,834 examples were built with many
still plying the rails in their as delivered configurations or as rebuilt
variations. Many Class 1, regional, and foreign railroads purchased the
AC4400CWs. Ownership spanned the North American Continent and
with their long lives, have seen numerous paint scheme variations and
ownership changes through the years. The AC4400CW went through
a large number of changes during its production. Some are easily
noticeable; early units being delivered with GE’s Hi-Adhesion Trucks,
while later units that had the option for newly developed GE Steerable
Truck. Other details are smaller and takes a careful eye to see; the
addition of a door stop, how the step wells are reinforced, or the number
and positioning of panels and doors.
Athearn has captured all these details thorough research and precision
tooling to reproduce dozens of variations. The newly tooled Genesis
AC4400CW takes its reign as the new flagship model for Athearn.

BRAND NEW GENESIS 2.0 TOOLING!

AC4400CW SERIES LOCOMOTIVE FEATURES:
• DCC-ready features Quick Plug™ plug-and-play technology with 21-pin
NEM connector
• Scaled from prototype resources including drawings, field
measurements, photographs, and more
• Accurately –painted and –printed paint schemes
• LED lighting adjusted to lifelike settings.
• Illuminated number boards
• Illuminated ground lights above front trucks
• Illuminated front and rear walkway lights
• Illuminated marker lights (where applicable)
• Etched, see-through walkway steps
• Animated roller bearing caps
• Coupler cut levers
• Flexible rubber MU hoses for durability
• Flexible rubber trainline hose
• See-through cab windows
• Full cab interior
• Walkway tread
• Fine-scale Celcon handrails for scale appearance
• Windshield wipers
• Lift rings
• Wire grab irons
• Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes
• Sander lines
• Brass horns correct to the prototype
• McHenry® scale knuckle couplers – Kadee compatible
• Genesis driveline with 5-pole skew wound motor, precision machined
flywheels, and multi-link drivetrain
• All-wheel drive with precision gears for smooth & quiet operation
• All-wheel electrical pickup provides reliable current flow
• Wheels with RP25 contours operate on all popular brands of track
• Heavy die-cast frame for greater traction and more pulling power
• Packaging securely holds model for safe storage

SOUND-EQUIPPED MODELS ALSO FEATURE
• Onboard DCC decoder with SoundTraxx Tsunami2 sound
• Dual cube speakers for optimal sound quality
• Sound units operate in both DC and DCC
• Full DCC functions available when operated in DCC mode
• Engine, horn, and bell sounds work in DC
• All functions NMRA compatible in DCC mode
• Precision slow speed control
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes
• CV chart included in the box
